Under the Skin: Part 1


Have you ever wondered what lies within the skin of the prodigious engineering marvels such like ships? You may be surprised to learn that ships or vessels like we humans and other living creatures have an intricate 'skeleton' underneath! Analogous to the complex network of bones and ligaments in living beings, they have a well-engineered arrangement of structural members in varying attributes.



Fig. 1 A high-definition picture of Queen Mary 2 (Courtesy: www.largestships.com Archives)


You may still be in some doubt!

Large number of big and small components make up the hull structure which is the primary phase of manufacturing of any vessel and is the most tedious task. It is believed that the safety and sustainability of the vessel during its service is a chunk dependent on the ingenuity of the structural members and thereby the entire structure. Failure of any single component leads to disastrous results. So, it is a challenging task to undergo detailed selection, arrangement, analysis and testing methods to these structures.With due respect to the traditional mechanical analysis methods of materials along with empirical probabilistic methods,modern computational testing methods accompanied by Finite Element Analysis and other precision software have eased the cumber of the olden days providing a wider scope of accuracy and precision.


SHIP'S HULL- AN OVERVIEW

                    Fig.2 Cross-Sectional View of a General Cargo Carrier


A ship's hull is comprised of a criss-cross network of perpendicularly placed plates or members which are fixated to each other at all possible degrees of freedom. Some crucial members include extensive varieties of plates, struts, columns, bars, beams, stanchions, angles, brackets, knees, elbows and so on.

Must be wondering the arrangement of all of these in a mere vessel? And that too which floats and treads in water for such a long span of time!


The answer is quite simple. There is a holistic placement of all of them in accordance to their capabilities which complies with their strength, scantlings, locations, loads/stresses and their utilities. A ship, as we know is a large structure aimed at overcoming all hindrances of distance, carriage and cargo, sea-states, environmental vagaries, titanic loads accompanied by the pressing issue of safety of life as well as property (cargo/machinery). Naval architects, shipbuilders and designers owe a considerable amount of showmanship regarding design, lines plan, materials, scantlings, strength and model testings, intricate architecture of each component, related calculations and final accuracy in materialization of the arduous job. An obvious question arises at this juncture: What should be the apt choice for material selection as far as the hull is concerned?



What is the material used?


Mild steel and wrought iron has been a sought-after choice of shipbuilders around the globe after the departure of the yesteryear wooden/timber vessels.However, in the recent times, wrought iron is losing its popularity owing to its corrosive nature and being bulkier.Mild steel earns the reputation of its abundance, ease in assemblage, lightweight along with required strength, ductility and malleability. However it is prone to failure under high stresses and hull shocks. It also has a degree of unreliability when it comes to their service as girders, struts or internal supporting members, with due respect to larger ships of today having massive tonnage. Furthermore it is highly corrosive in nature and is also prone to other problems like fouling. So, another breed of steel, High Tensile Steel/High Strength Steel with increased yield points have stolen the limelight. They include grades of steel like AH,DH,EH. Their yield point lies in the range of 315-350 MPa!


Fig.3: A very rare pic of The Titanic in construction. Wrought iron and mild steel were the chief materials used along with rivet joining (Courtesy: www.amberonline.com)


But as it is said, everything has its pros and cons. High Steel Strength, despite its high degree of toughness has poor response when it comes to the problem of flexural bending. As longitudinal bending is inevitable in most of the large ocean-going vessels, they often pose the risk of fracture due to intensive bending moments at uncongenial sea states. The advent of composite fabricated members in the modern shipbuilding has changed the scenario. Though the SOLAS requirements and a majority of classification societies were dubious about its utility in the superstructures or other deck areas, thanks to its reduced fire resistance, the mid-1980s saw a gradual upraise of composite fibers in the industry. As usual, supporting reasons existed!


  • Lightweight. This helped in easily meeting the critical dead-weight barrier assigned to a ship. So this, up to a certain extent  helped in greater "inclusion" of added mass on board which was a constraint if material was a bulky one like steel.
  • It has a lower life cycle cost coupled with cheaper maintenance and durability.
  • Due to its light weight, it amounted to lower fuel consumption.
  • Higher stiffness and accorded to greater flexural bending moments by the virtue of its elasticity.
  • Was tough and rigid with minimal scope of cracking. Offered greater resilience.
  • Often use of composite material allowed higher superstructure and more accommodation space in passenger vessels designed for a given displacement.
  • Its resistance to corrosion and fouling when present as a component in the hull structure was a boon.
FRP-sandwich panels/GRP-sandwich panels and PVC enforced steel plating found great predominance. Polymeric and non-polymeric materials found equal importance. However, composite had disadvantages as well like being highly flammable or being difficult to manufacture along with yielding at very high temperatures. Thus the decisive step is being taken as to optimize between steel and composite materials in suitable proportions for the best results.


Fig. 4 (Copyright:Linkedin)


Apart from these, forged steel and cast steel are used in secondary structural components like rudder posts, stern frame and stem according to the specifications of the latest classification societies. Some classification rules even give higher adherence to the existing Aluminium Alloys as the principal material for the construction of deckhouses, superstructures, hatch openings, covers etc. over composite materials.


BASIC/FUNDAMENTAL STRUCTURAL MEMBERS


After a brief insight into the material properties commonly used, let us have a glance at the big and small structural members that make up a ship's hull!



              Fig. 5 General steel plating arrangement of the ship's hull (Courtesy: wikipedia.org)

Plating

They are the primary building blocks to any vessel just as bricks are to any house ! Right from the day when wooden vessels were made of wooden boards to the present day where steel/composite plating form the hull. Plates of varying dimensions or scantlings are used depending on the functionality, general arrangement and stress considerations. The final placement of the plates give rise to the structural truss which along with the outfitting and ancillary components give rise to the entire vessel form. Platings broadly referred to the outershell  plating as well as the inner walls of the hull. They may also be found in the modified form of bulkheads or as components in decks and other outfitting. Platings prove their versatility in the role of taking up any shape as per the criteria, like round or being curved.

Well, a question which is definitely going to arise in your minds at this juncture: How are these mere plates joined or concatenated to give rise to the final shape?



  Fig. 6 Ongoing welding jobs within a ship's hull (Courtesy: www.gettyimages.com)

The answer is quite simple. Joining is very catalytic component in shipbuilding not only a ship's production but also its subsequent productivity, performance and safety is highly dependent on the joining methods. The total length of structural joints in a large cruise ship is of the order of 400 -500 km! Even that too has an evolution like the ship itself.

Earlier,the method of caulking was used to make the seams in wooden boats and ships watertight, by driving fibrous materials into the wedge-shaped seams between boards.Till the World War era, it's successor riveting was the chief technique employed which was the . The entire ship was exacted by joining cogs and nuts at every plate/board itself. This was a tedious task which made making of a ship very cumbersome and time-taking.

However, post-World War II, the modern techniques of Welding took over. Welding as we know is a safe,convenient and firm way of joining metals. Without delving into the details some of the various methods of welding involved are :

  1. Electric-Arc Welding
  2. Electro-Slag Welding
  3.  Shielded Metal Arc Welding
  4. Submerged Metal Arc Welding
  5. Gas Metal Arc Welding
  6. Ceramic Welding
  7. Laser Welding


 Fig. 7 Underwater welding repair of hull (Copyright: www.telegraph.co.uk)



While each of them have their own pros and cons, other methods of metal joining like Adhesive Bonding and Mechanical Joining Techniques are often used as well.

  Keel :




          Fig. 8 Typical closeup view of keel network (Courtesy: googleimages)


All of you must be familiar with this term. It is often referred to as the backbone of any ship. It is the chief structural member in the form of the center plane girder that runs longitudinally from fore to aft, generally a beam around which the entire hull is supported. This could be worth saying that the entire hull grows from strength to strength about the keel at the base. The structural strength and integrity of the keel, is a key determinant to the safety and the performance of the ship.

Maybe, this is why keel laying ceremony is celebrated in such an aura in any shipbuilding project!


The keel forms are divided into three principal types:



  • Flat keel. The commonest form of every keel. A highly strengthened, flat beam is placed parallel to the ground. Most of the large ocean-going vessels and other bigger ships nowadays have this type of keel. This accounts for lower resistance, accurate draught; but is susceptible to grounding.


          Fig.9 Keel laying of an old design flat-plate keel (Courtesy: wikipedia.org)

  • Bar keel: An old design of keel, still used in many smaller vessels and boats involves a rectangular cross-section flange poised over the bottom-most part of the hull. They are becoming rarer these days, thanks to its added weight problems which increase draft without increasing the displacement. However, having the unique property of jutting out below the main hull form closure ,bar keels are still alluded as a ready-hand solution to excess rolling.
  • Duct keel is the hollow form of the keel floor in some ships, generally running from collision bulkhead to engine room bulkhead with the provision of allowing piping systems throughout its expanse.




 Fig. 10 Inside a duck keel passage of an LNG carrier (Courtesy: http://www.fsharris.co.uk/gallery/29.jpg)



Strakes

They specifically refer to the bottom and side shell plating which are the supposed points of maximum stresses. Strakes are categorized as Bottom Strake, bilge strake and Sheer Strake. The bottom shell plating follows a unique system of nomenclature in almost all ships,i.e. in the form of successive alphabets with the keel as reference (e.g. A strake, B strake etc.).
The first stake in the order of appearance is also termed as Garboard Strake.
Similarly, the strake situated at the "turn of the bilge" is referred to as the Bilge Strake.
The upper-most strake near the deck edge is the Sheer Strake. It may be worth saying that as these are the critical points of high stresses, additional strengthening is provided to these plating to sustain high amounts of unpredictable loads.

Other members: Even if the ship looks complicated, its structural components are not that much complicated or massive as they might seem.The items are very basic like columns, struts, beams, flanges, angles, brackets and stanchions. Maybe these are not all. Small to negligible members exist in every minuscule of the vessel to give rise to the proper functionality of the structure. The nomenclature of all such members are different according to their role and location.Their role may be variant in the either of the following forms:

  • Construction
  • Support
  • Strengthening
  • Stiffening


          Fig. 11 Diagram of all the basic structural parts of an arbitrary hull section (Copyright: United States Naval Academy student archives)


Although strengthening and stiffening are not exactly same, we simplify our topic of discussion by the convenience that the corresponding structures employed in ship construction are one and the same. We next a brief insight into the stiffening members.

 STIFFENING AND STIFFENERS


The word 'stiffening' essentially suggests the purpose of providing extra stress-bearing capacity or rigidity to the existing structural member.

Does simply erecting four successive plates in a mid-ship section, for instance serve the purpose?

The answer is a big no. Every structural member requires a stiffening in some form not only to be stable itself, but also to provide resistance to the various amount of internal and external causal agents leading to stress concentrations on the structure. These stress concentrations as you know are fatal, even if neglected once! Thus stiffening from grass root level is of utmost mandate for every single component irrespective of size, location, form and purpose. Stiffeners are these secondary structural components which conjoin with the principal members giving rise to the complete framework of stiffened panels.These panels in unison all throughout the designated length, beam and depth form the final structure of the ship's hull. The stiffeners also have their own classification:


  • Longitudinal Stiffeners: As the name suggests, they provide longitudinal stiffening,viz., retain the rigidity against the longitudinal bending and buckling of the ship. As the waves in the open seas are unpredictable and maybe sometimes highly precarious, failure. Longitudinal stiffening mainly focuses on the length-wise stiffening parallel to the center line. The primary objective running through the mind of all designers and naval architects are the basic concepts of shear force and the resultant bending moment which may be given as:
       All of them are attributed to either of the three groups:
  1. Longitudinals- They are the stiffeners running longitudinally along the bottom of the ship (parallel to the baseline) from fore to aft. They stiffen the bottom-shell plating of the hull, hence preventing it from the external forces such as the wave loads and the internal forces such as loads of cargo or the other contents of the hull. Essentially they are girders of specified scantlings depending on the applicability of the vessel type.
  2. Stringers-If we concentrate on the longitudinal stiffening at the side shell girders, stringers are the answer. They are like longitudinals, sideshell plating strengthening members on the hull. Even as the sideshell platings are prone to high amount of transverse wave stresses, they are also reserved to the maximum degree of rigidity
  3. Deck Girders/ Longitudinals: Longitudinal stiffening underneath the main deck, i.e, in conjunction to the inner deck plating. They deck is prone to various types of loads, like passenger/crew, live loads, deck equipment, superstructure, green water etc. Thus deck girders running fore to aft serve the bulk of the purpose. However, they are not having high section modulus as lower bottom shell plating as the deck is considered relatively less affected by high stress as compared to the bottom.

  • Transverse Stiffeners. They provide transverse stiffening across the breadth/beam of the ship. They are mutually orthogonal to the longitudinal stiffeners. Akin to their longitudinal counterparts, they too can be segregated into three forms based on their functionality.

  1.  Frames are the larger portions of these transverse stiffeners which run from the keel to the main deck uninterrupted. Frames occur at specified intervals throughout the length of the ship. The spacing between the frames is dependent upon the dimensions and the operation of the vessel along with its type. One crucial thing that must be kept in mind is that they are not to be confused with Stations nor Bulkheads. While the former is an imaginary hypothesis assumed by naval architects while shaping up their lines plan, the latter is a composite structural feature. But frames only align themselves with the side shell and the bottom shell plating without interfering with the inner aspects providing an integral contribution in stiffening plating transversely.
  2. Floors assumed to be the continuation of the frames at the base. In general, they can be simply interpreted as the transverse stiffening of the bottom-shell plating. In the case of a single bottom ship, frames are sometimes connected directly to floor plates. The lower ends of tween deck frames are connected directly to the deck plating or are extended beyond deck-head and fixed at brackets.
    However, in most of today's ships, the concept of double hull has been imbibed. Hopefully, all of you know what a double hull represent? For the novice, it is just enough to know that they are two-layered system of bottom plating, i.e an outer shell plate and another inner bottom shell plate with some clearance. Floors are generally sandwiched between the inner and outer shell plating to provide sturdiness to the bottom hull. Floors even have their type like solid floors and bottom floors, about which we refrain to comprehend at this juncture.

  3. Deck Transverse They, like deck girders stiffen the deck-shell plating, but across the allowable beam. However, their strength and spacing depends on the type of the vessel and the 'superstructure loads'.




                  Fig. 12 A typical cross-section of a 5000 DWT coastal tanker showing all the essential stiffeners and resultant stiffened panels ( Courtesy: Ship construction by D.J. Eyres)



Reiterating the last point on Deck Transverses, it may be worthwhile to say that the placement and the number of the longitudinal or stiffener framing system is solely dependent on the type of vessel, capacity, service, sea-states, cargo optimizing the owner's economical constraints with due adherence to the Factors of Safety.
It may be suffice to know that in most of the smaller ships having Length-to-Breadth ratio not very high, the number of transverses are more than the number of longitudinals. The spacing inbetween the transverse stiffening members are also very less; they are crowded! This type of framing system known as Transverse Framing System is mostly deployed in the smaller vessels where longitudinal bending is not much of an issue. Transverse stiffeners provide resilience against transverse forces such as those induced by the side waves which can cause unwanted Racking and Torsional motions in the ship.

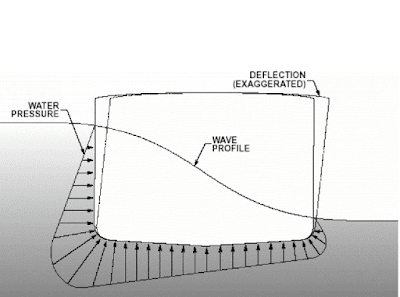

                           Fig. 13  Profile of the sideways wave forces and the transverse deflection/deformation inducing racking motions (Courtesy: United Stated Naval Academy student archives)

On the contrary, in large/lengthy vessels such as general cargo ships or the majority of the passenger liners which are prone to longitudinal bending, buckling, flexure, there is more number of longitudinal stiffening induced in all along its length. The spacing between the longitudinals are reduced considerably. A ship of this type may be reckoned as a 'Longitudinally Stiffened Ship'.


TO BE CONTINUED

      Fig. 14 Ongoing Ship Construction (Courtesy :www.wikipedia.org)


So far we had talked about the basic components of the hull in brief. Maybe that is not enough. Similar to the universal process of concatenation, the basic structural elements join in various forms and types to form what is known as the 'Grillage'. The hierarchy of evolution from simple elements to complex ones follows a definite algorithm of assemblage. One thing that must be kept in mind is that the composite form of the ship's hull is basically a resultant of three different kinds of formation, regardless of the modern designs as well as evolution of the composing materials.
  • Stiffened Panels
  • Frameworks
  • Blocks
All of you will be provided an insight to the more detailed process of assemblage of individual materials in a well-defined hierarchy in the next article. For the time being, it is just the idea that the ship's hull is just like any other indigenous engineering output where basic elements of given material composition are arrayed in a predefined manner, of course keeping in mind the strength, reliability, utility, safety and economy into consideration.LSD



Fig. 16 Freedom of The Seas (Courtesy: www.usatoday.com)


Article By: Subhodeep Ghosh
